Spain – Smarter traffic light priority in Vitoria-Gasteiz
A key step toward smarter, real-time public transport priority – enhancing bus flowand commuter experience in Vitoria-Gasteiz.
Scope:
Pilot project for bus transit signal priority using connected vehicle technology
Kapsch Solutions:
Transit Signal Priority, EcoTrafiX™ Suite, RIS-9160 RSU, CBX-9160 OBU, CMCC
Key Outcome:
Reduced delays for buses, improved commuter experience, scalable model for other cities
Next Generation funds within the Ciudades Conectadas project
A need to optimize traffic flow and support sustainable mobility
The city of Vitoria-Gasteiz sought to improve the punctuality of its BRT system by reducing delays through a priority solution at intersections. This meant integrating new technology into the existing urban environment without disrupting daily traffic operations, while ensuring a scalable approach to enhance overall service efficiency.
Connected vehicle technology forreal-time bus prioritization
In 2024, Kapsch TrafficCom Spain was awarded a pilot by TUVISA to implement Transit Signal Priority (TSP) through connected vehicle technology. The solution integrates the latest-generation Kapsch 5.9GHz roadside units (RIS-9160) and onboard V2X communication units (CBX-9160) with existing traffic management systems, coordinated by the EcoTrafiX™ Suite and Connected Mobility Control Center (CMCC). The system uses real-time GTFS data on bus schedules, position, speed, and delays to dynamically adjust traffic signals. This grants buses on Line 5 priority at a key intersection, reducing wait times and improving service reliability.
Key elements of the solution include:
- RIS-9160 roadside and CBX-9160 onboard units
- GTFS connector for processing schedules and delays
- Integration with EcoTrafiX™ platform and controllers for automated green phases
- Continuous whitelist updates via the CMCC

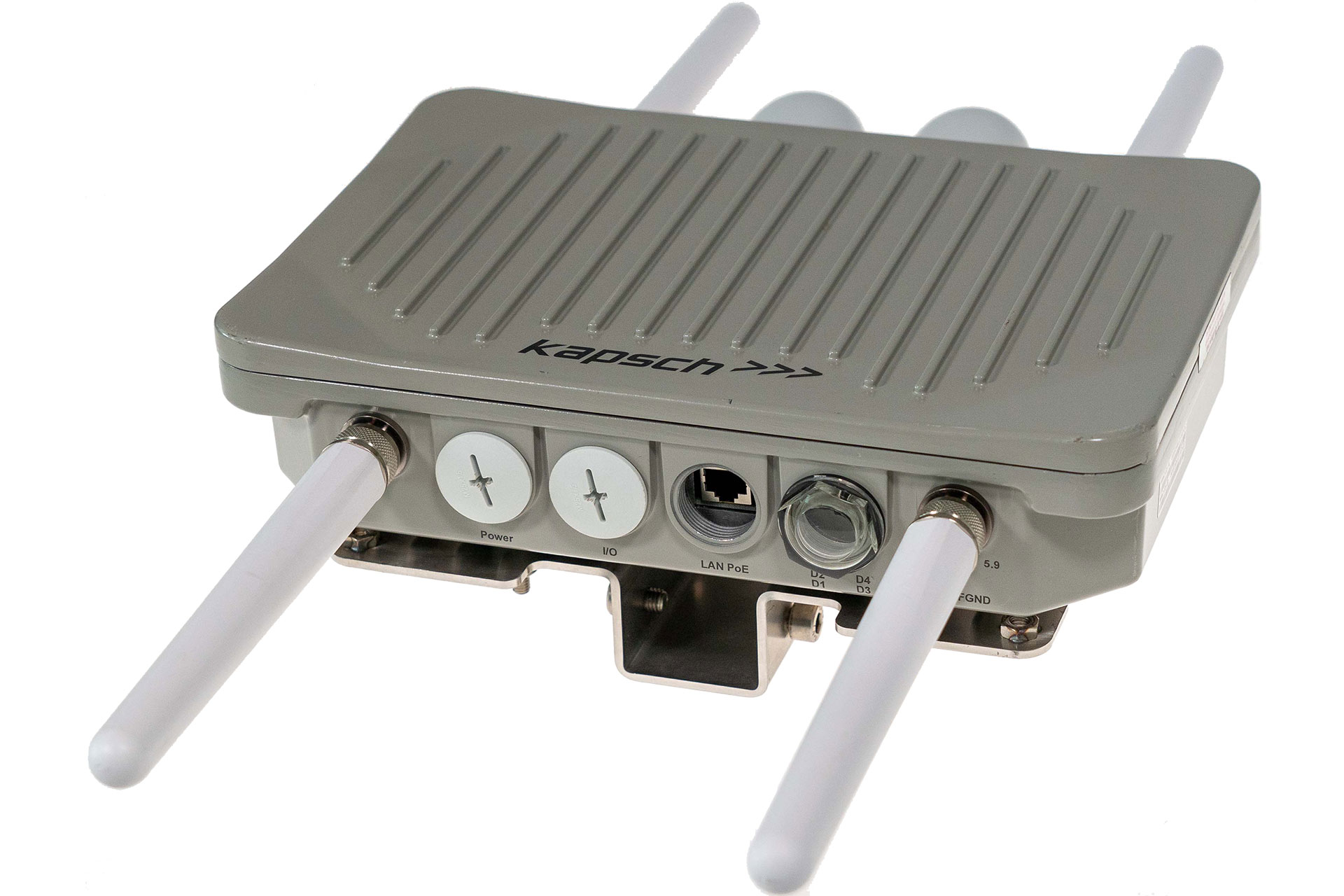

RIS-9160

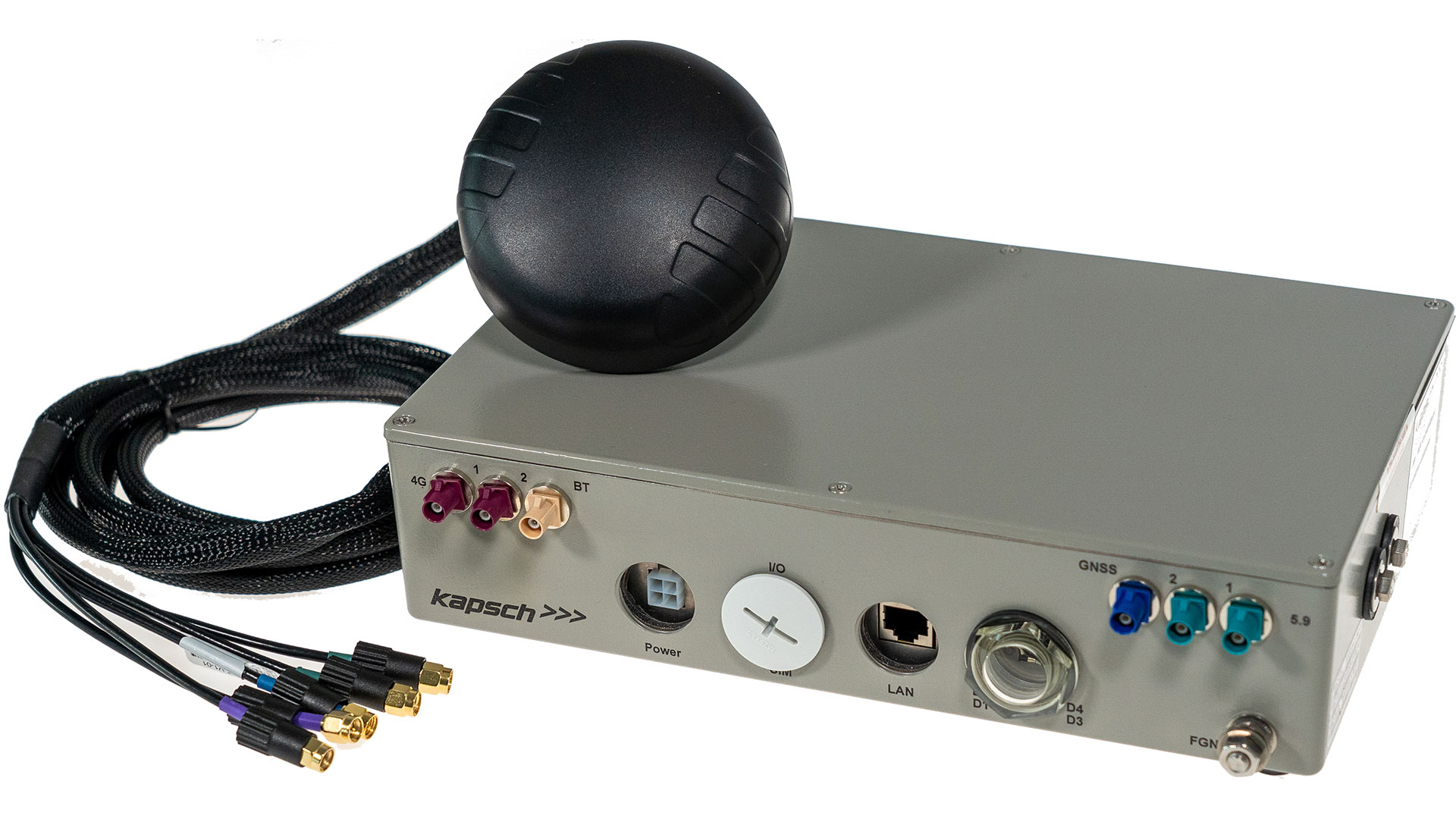

CBX-9160 OBU

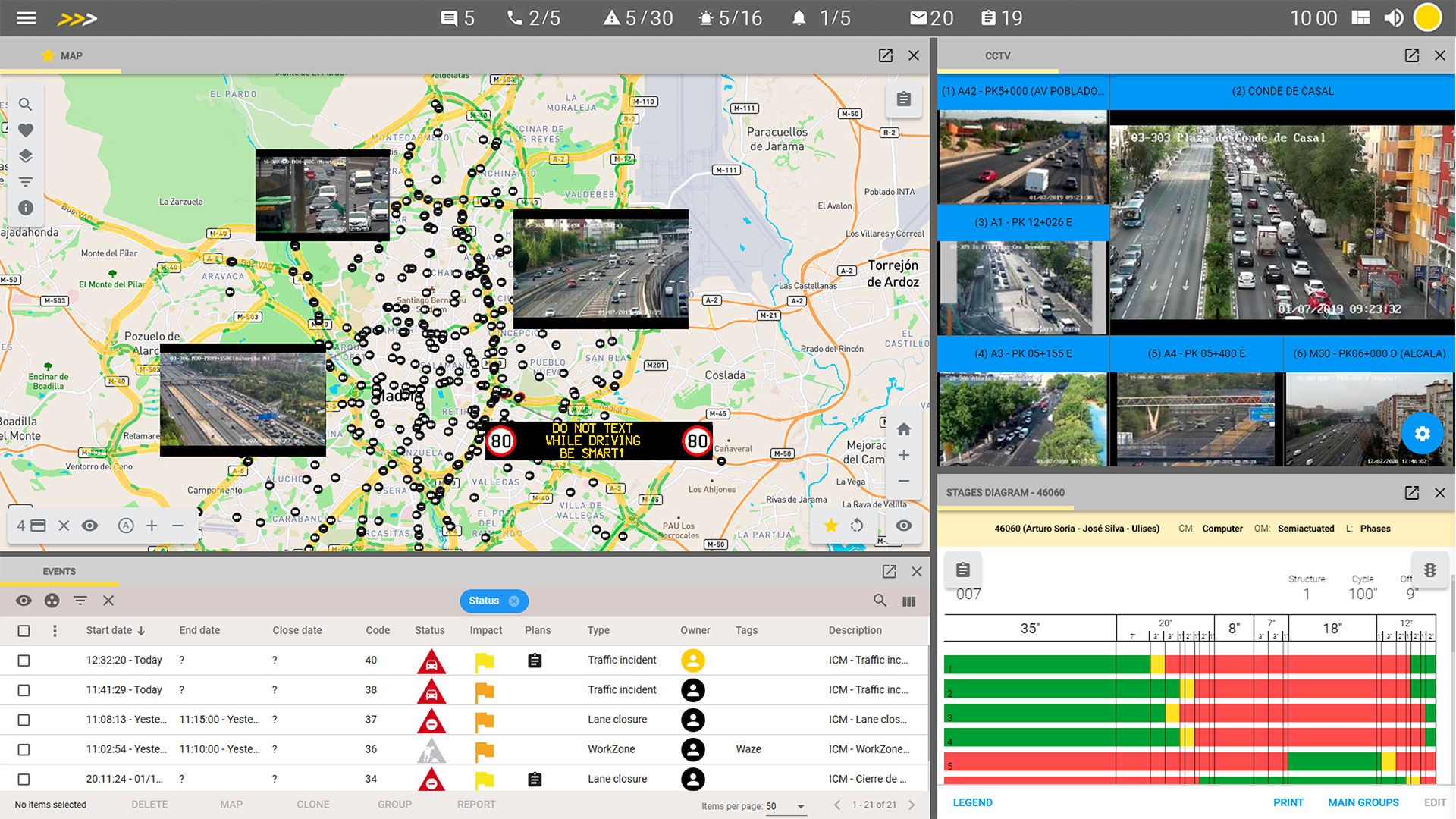

EcoTrafiX™ Suite

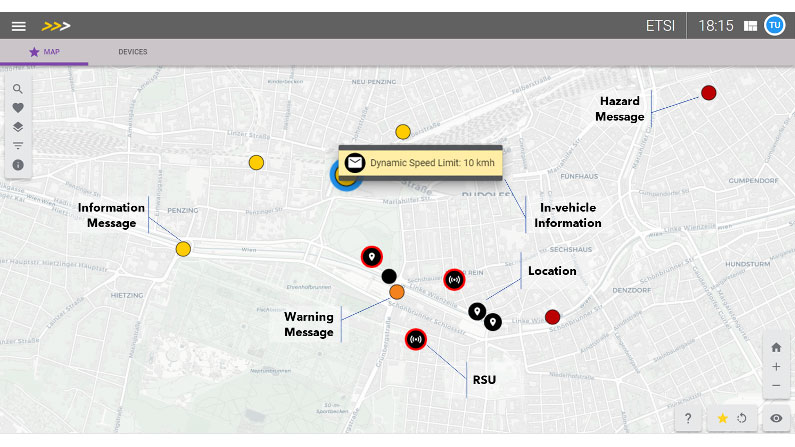

CMCC
Impact
Improved public transport efficiency
Reduced delays for buses leads to smoother service and better experience for commuters.
Minimized infrastructure impact
Requires no additional lanes, simplifying implementation and reducing long-term complexity.
Foundation for future smart mobility
Demonstrates scalable connected vehicle technology that can be extended to broader urban areas.
